Introduction: The Miniaturization Challenge in Consumer Electronics

Consumer electronics continue to move toward thinner and more compact designs. Devices such as wearable products, portable electronics, smart controllers, and embedded modules require efficient use of internal space while accommodating an increasing number of functional components. As product dimensions shrink, engineers must carefully manage PCB layout and internal structural space.

Among these design considerations, the vertical dimension—often referred to as the Z-axis height—plays an important role. Many internal components, including batteries, displays, sensors, and wireless modules, compete for limited space. As a result, connectors used for flexible printed circuit (FPC) connections must balance structural compactness with stable electrical performance.

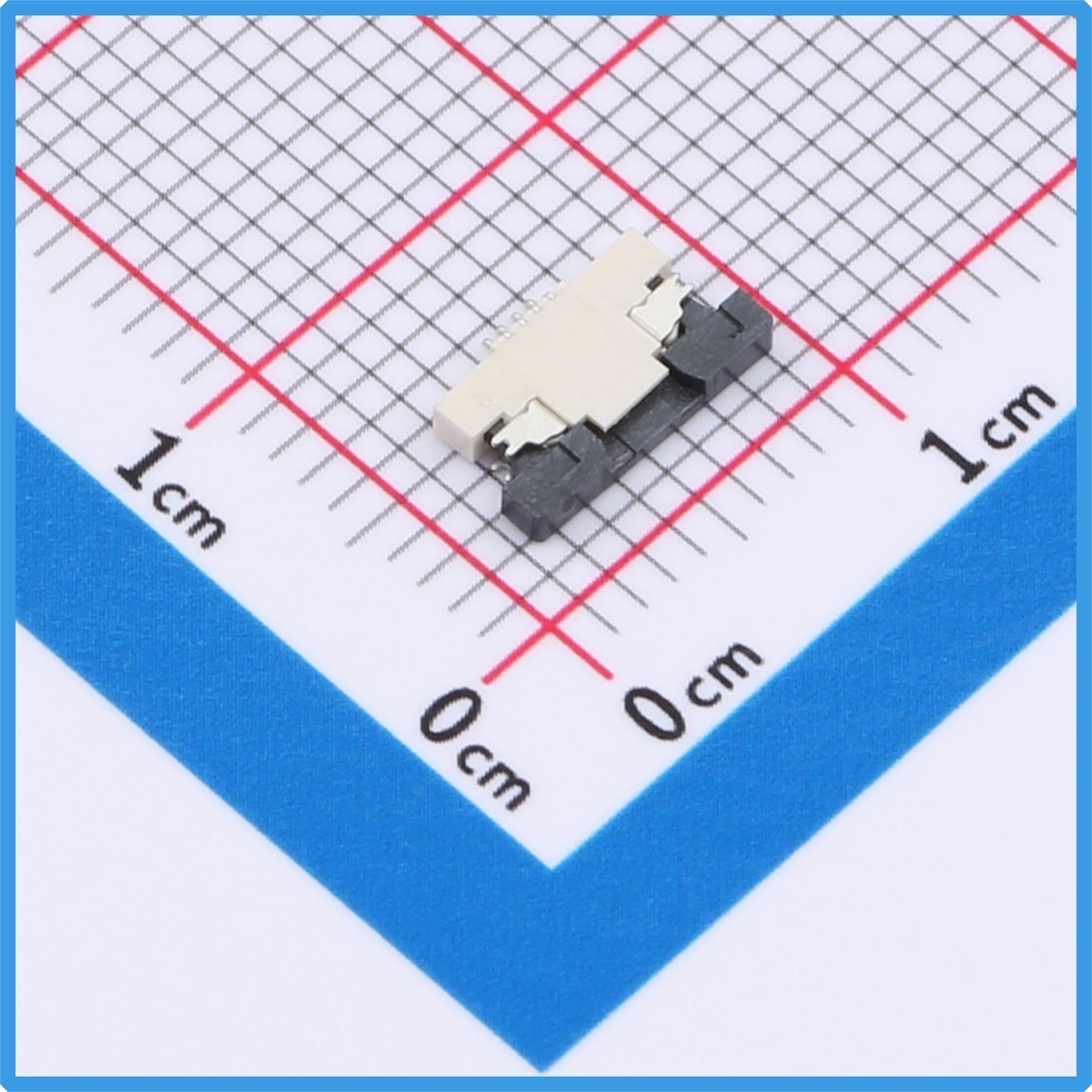

The Kinghelm KH-CL0.5-H1.2-4PS-SMT 0.5mm pitch drawer-type FPC connector is designed for compact electronic assemblies that require controlled height and reliable cable retention. With a low-profile structure and surface-mount configuration, it supports space-conscious PCB layouts used in modern electronic products.

The Combination of Horizontal Mounting and Low Profile

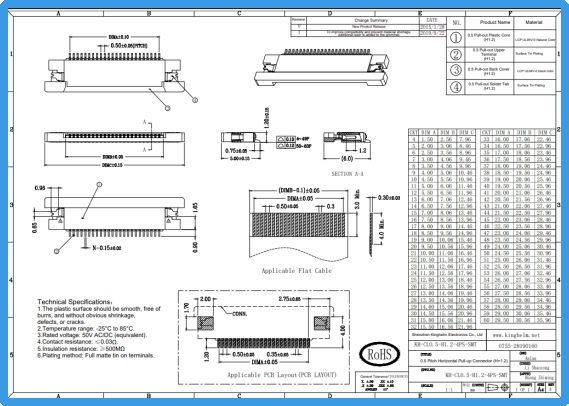

The KH-CL0.5-H1.2-4PS-SMT features a horizontal mounting structure with a board height of 1.2mm. In thin electronic devices, connector height directly influences the overall product structure. Lower components provide designers with greater flexibility when arranging PCBs, structural frames, and surrounding electronic parts.

Compared with traditional vertical connectors, horizontally mounted connectors spread their structure along the PCB surface instead of increasing the vertical dimension. This design helps reduce the required Z-axis space and supports compact product architectures.

A 1.2mm board height is particularly useful in devices where internal stacking is unavoidable. Examples include smart wearables, compact wireless modules, handheld devices, and small control boards. In these products, internal space is often occupied by batteries, shielding covers, antenna components, and sensors. A low-profile connector helps maintain functional connectivity without adding unnecessary height.

With a 0.5mm pitch design and four contact positions, the KH-CL0.5-H1.2-4PS-SMT provides a compact interconnection solution while maintaining a dense PCB layout capability.

Drawer-Type Locking: More Than Just Cable Retention

The locking mechanism of an FPC connector plays an important role in maintaining stable connections. The KH-CL0.5-H1.2-4PS-SMT adopts a drawer-type locking structure. This design differs from commonly used flip-lock or back-lock connector mechanisms.

In a drawer-type design, the flexible cable is inserted into the connector slot and then secured by sliding the locking component into place. This operation requires minimal vertical clearance, which is helpful when the surrounding structure limits movement.

Compared with flip-type connectors that require lifting and closing a cover, the drawer-type mechanism relies on a sliding motion to secure the FPC. The locking element presses the flexible cable into position, helping maintain stable contact between the connector terminals and the cable conductors.

In devices that experience minor vibration during operation—such as portable electronics or mobile equipment—stable cable retention helps reduce the possibility of accidental loosening. The drawer-style mechanism provides a consistent clamping action that supports reliable cable positioning.

Electrical Performance and Manufacturing Considerations

The KH-CL0.5-H1.2-4PS-SMT uses a top-contact terminal design. In this configuration, the contact terminals are positioned above the inserted FPC, allowing them to press downward onto the cable conductors.

Top-contact connectors are commonly used when the exposed conductors of the flexible cable are located on the upper surface of the cable orientation. This arrangement can simplify cable routing and reduce the need for twisting or flipping the FPC during installation.

Proper contact alignment contributes to stable electrical conduction in signal and low-voltage power transmission. For many electronic circuits, maintaining consistent contact pressure is an important factor in preserving signal continuity.

From a manufacturing perspective, the connector uses a surface-mount device (SMD) package and is supplied in tape-and-reel packaging. This format is compatible with automated pick-and-place assembly lines and reflow soldering processes commonly used in modern electronics manufacturing.

Tape packaging allows automated equipment to place the connector onto the PCB efficiently, supporting consistent assembly processes during mass production. SMD connectors also help streamline PCB assembly by eliminating through-hole soldering requirements.

Compatibility and Durability

FPC thickness is a key parameter when selecting connectors for flexible cable applications. The KH-CL0.5-H1.2-4PS-SMT is designed to accommodate flexible cables with a thickness of 0.3mm. Matching the cable thickness with the connector specification helps prevent installation problems and ensures proper locking operation.

The connector contacts are plated with tin, which provides suitable electrical conductivity and solderability for typical electronic assembly environments. Tin plating is widely used in many consumer electronics connectors due to its compatibility with standard soldering processes.

The operating temperature range of the connector is from -25°C to +85°C. This range supports common environmental conditions encountered by consumer electronics, portable devices, and certain industrial electronic products.

The connector is rated for a voltage of 50V, making it suitable for low-voltage signal and power connections commonly found in compact electronic circuits.

Conclusion

As electronic devices continue to evolve toward thinner and more compact designs, connector selection becomes an important part of system architecture. Low-profile structures, stable cable retention, and compatibility with automated manufacturing processes are key considerations in modern PCB design.

The Kinghelm KH-CL0.5-H1.2-4PS-SMT 0.5mm drawer-type FPC connector combines horizontal mounting, a 1.2mm board height, and a sliding locking structure to support compact device assemblies. Its top-contact configuration, SMD packaging, and tape-and-reel supply format make it suitable for automated production environments.

With compatibility for 0.3mm thick flexible cables and operating characteristics suited for typical electronic systems, the connector can be used in a variety of compact electronic applications where efficient space utilization and reliable cable connection are required.
