『Product Highlight』Kinghelm FPC Connector KH-FPC1.0-H2.0SMT-10P-QCHF: Reliable Interconnection in Compact Designs

With the continuous expansion of the Internet of Things, electronic product design is shifting from a focus on “size constraints” to a deeper concern for “performance stability.” In earlier stages, engineers prioritized fitting more functions into limited space. Today, as devices become thinner and more integrated, the role of the FPC connector has evolved. It is no longer just a basic interconnection component, but a critical factor influencing overall product performance.

From an application perspective, the rapid development of camera modules and smart home display modules is driving demand for higher-density interconnection solutions. Camera systems require stable data transmission under dynamic conditions, while smart appliances emphasize slim structures and clean exterior design. These trends place higher requirements on FPC connectors in terms of structural compatibility and connection reliability.

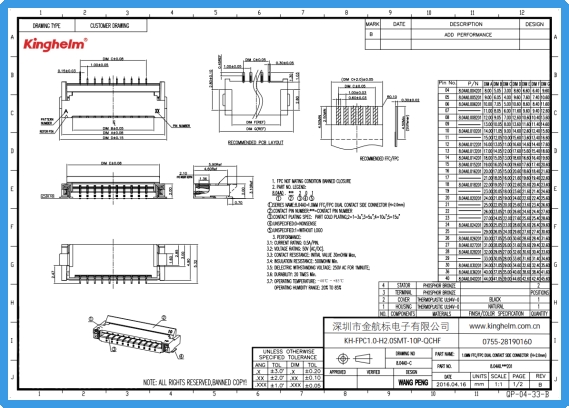

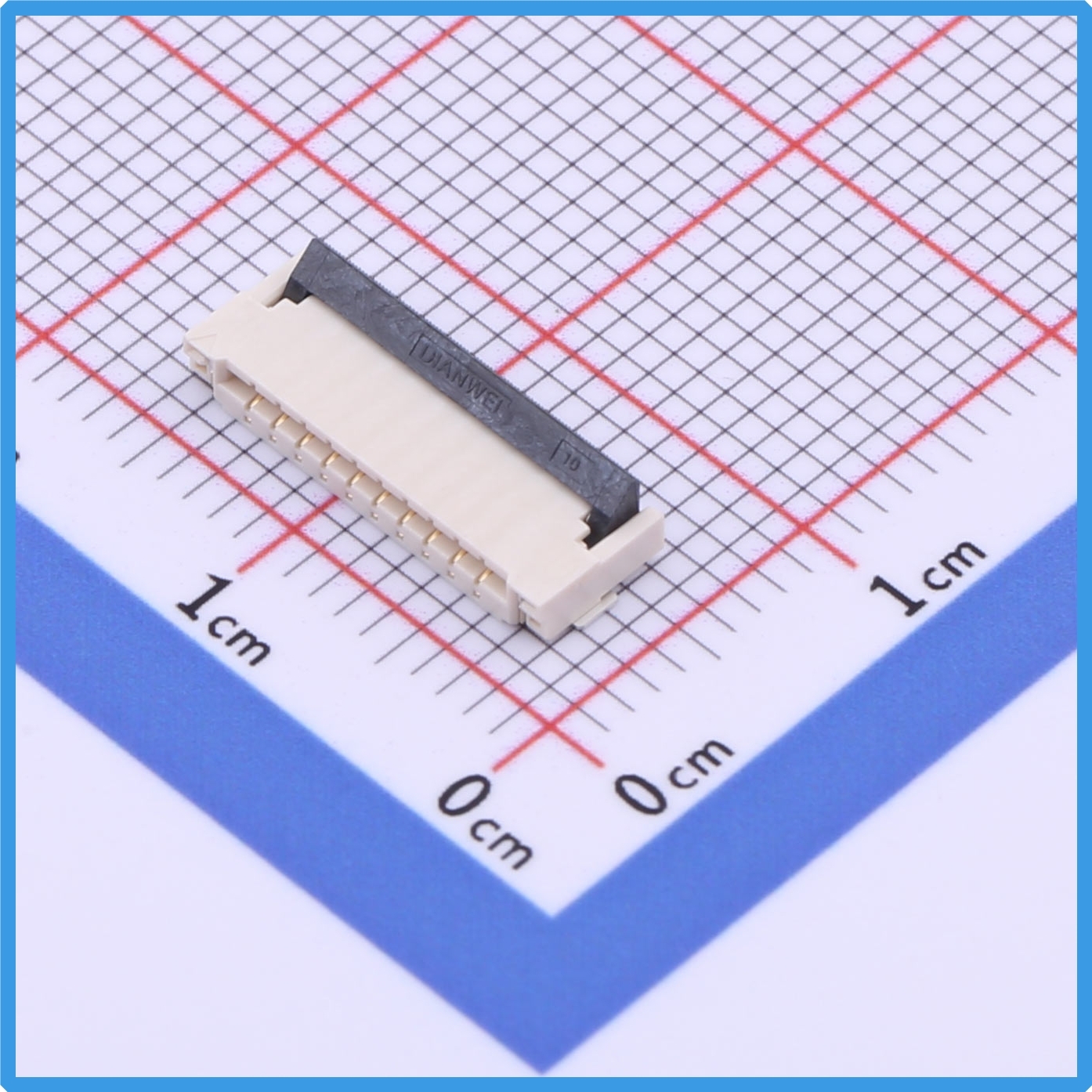

In this context, the Kinghelm FPC connector KH-FPC1.0-H2.0SMT-10P-QCHF plays an important role as a key component in various applications. This FPC connector features a 1.0 mm pitch with 10 contacts and supports a surface-mount (SMT) horizontal installation. With a low profile height of 2.0 mm, it is suitable for compact design environments where space is limited. The flip-lock structure (front insertion, back flip) helps secure the FPC firmly after insertion, reducing the risk of loosening. Its dual-side contact design supports top and bottom contact options, providing flexibility in PCB layout. The contacts are made of phosphor bronze with gold plating, balancing electrical conductivity and durability. It operates within a temperature range of -40°C to +85°C, with a rated voltage of 50V and a rated current of 500mA, making it suitable for various low-power signal transmission applications.

Scenario 1: Network Camera (IPC) Motor and Lens Module Connection

In network cameras, motors are used to adjust lens angles, requiring the FPC cable to bend repeatedly during operation. This places higher demands on the connector’s ability to maintain stable electrical contact under dynamic conditions. The Kinghelm KH-FPC1.0-H2.0SMT-10P-QCHF FPC connector uses a flip-lock mechanism to secure the cable, helping to prevent displacement or poor contact during continuous movement.

The gold-plated contacts contribute to stable signal transmission, supporting consistent video data flow and reducing the likelihood of frame interruptions. Additionally, the dual-side contact design allows more flexibility in internal layout, which is beneficial for compact camera module structures.

Scenario 2: Smart Home Appliances (Refrigerators, Washing Machines, Ovens) Control Panels

In smart appliances, control panels are increasingly integrating display and touch functions, leading to thinner and more compact internal structures. The FPC connector plays a key role in linking the main control board and display module. The 2.0 mm low-profile design and horizontal SMT mounting of the Kinghelm FPC connector help reduce overall thickness, aligning with modern minimalist design trends.

Regarding environmental adaptability, this FPC connector supports a wide operating temperature range from -40°C to +85°C, making it suitable for varying conditions such as high temperatures in kitchens or fluctuating environments. This helps maintain connection stability under different operating conditions.

The flip-lock design also simplifies the assembly process. By inserting the FPC and closing the latch, the connection can be completed efficiently, which is beneficial for manufacturing consistency.

Scenario 3: Battery Management Systems (BMS) and Small Power Devices

In battery management systems and portable devices, although the current requirements are relatively low, signal integrity remains essential. The Kinghelm KH-FPC1.0-H2.0SMT-10P-QCHF FPC connector serves as a stable interconnection solution in such applications. Its phosphor bronze contacts provide a certain level of elasticity, which helps maintain consistent contact pressure in environments with vibration.

For devices that may experience movement or mechanical stress, this structural feature helps reduce the risk of intermittent connections, supporting continuous signal transmission. The 10-pin configuration is also suitable for multi-signal connections commonly required in BMS systems.

Conclusion

As electronic products become increasingly similar in external design and functionality, internal component selection is gaining more attention. The FPC connector, as a bridge between circuits, directly affects the long-term stability and performance of a device.

The Kinghelm FPC connector KH-FPC1.0-H2.0SMT-10P-QCHF serves as a key component in various applications, supporting stable interconnection in compact designs. Careful selection of such components contributes to consistent product performance and helps reduce potential maintenance issues over time.
