Introduction: How Internal Interconnection Shapes Product Design

As smart devices continue to evolve toward thinner and more compact designs, internal connection solutions play an increasingly important role. From smart home products to portable electronics, engineers must balance functionality, space utilization, and structural reliability within limited internal layouts.

Flexible Printed Circuits (FPCs) are widely used due to their flexibility and space-saving advantages. The connectors that interface with these FPCs are critical components, directly affecting signal transmission, assembly efficiency, and long-term stability. Connector structure, locking mechanism, and dimensional specifications all influence the overall performance of the end product.

The Kinghelm KH-FPC0.5-H5.0-18P-LTQB is designed to address these requirements, offering a practical interconnection solution for various compact electronic systems.

Product Overview: Structure and User Experience

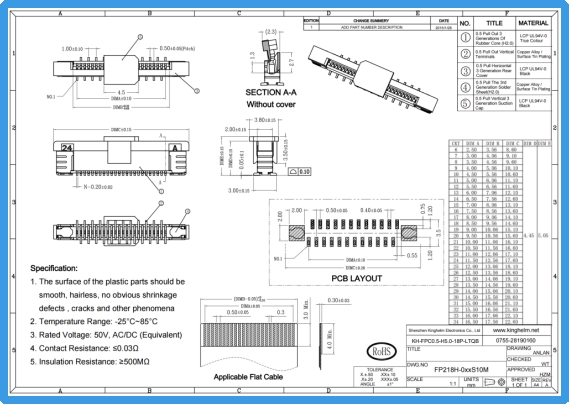

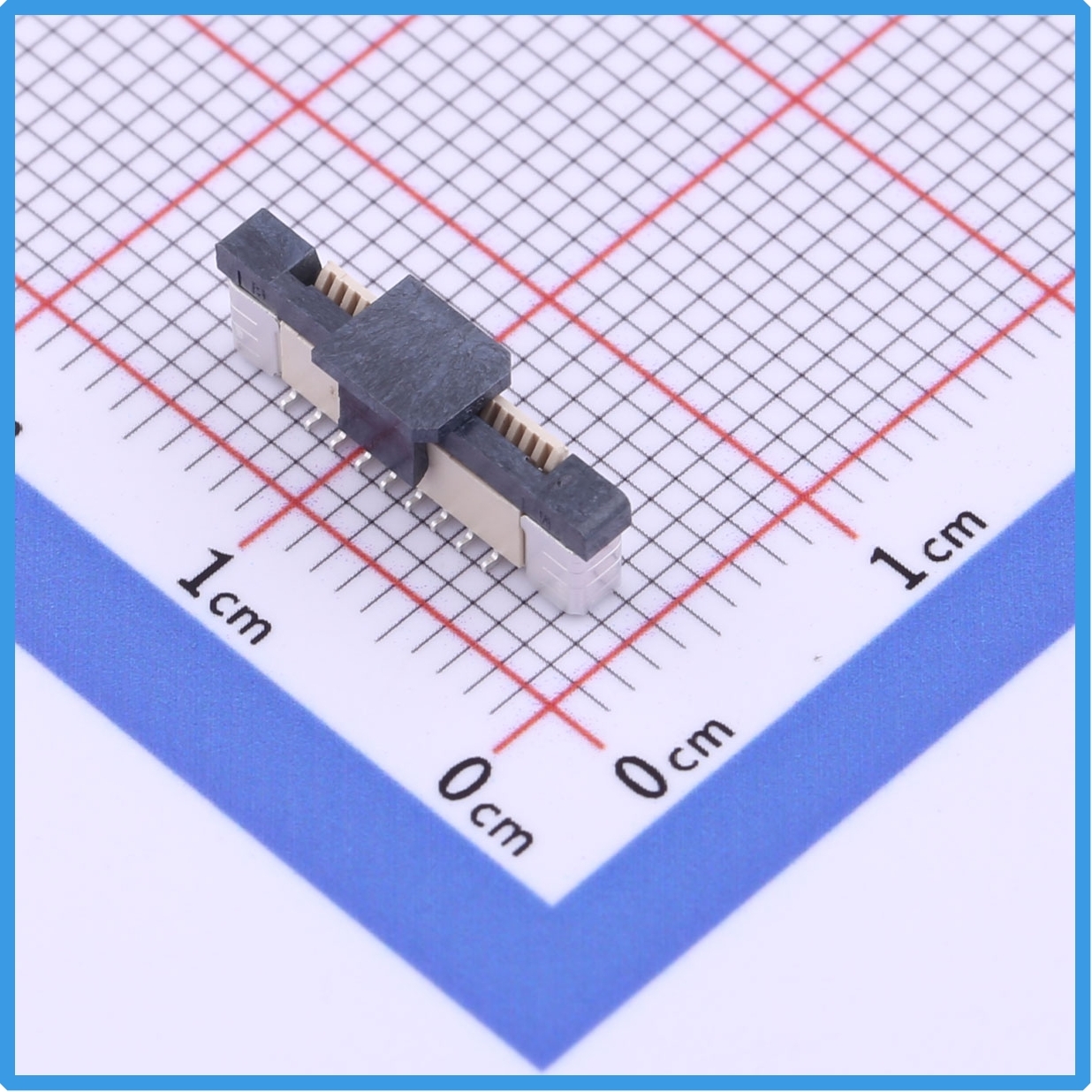

The KH-FPC0.5-H5.0-18P-LTQB features a vertical surface-mount (SMD) design, allowing efficient PCB integration. The connector has a compact form factor, with a black housing and metallic contacts that provide a clear structural layout. Its 0.5mm pitch supports high-density circuit designs, helping optimize board space.

This connector adopts a single-sided contact configuration with vertical insertion, simplifying the FPC alignment process during assembly. With a profile height of 5mm, it fits well into compact device structures without excessive space occupation.

A notable feature is its drawer-type locking mechanism. During operation, the user inserts the FPC cable and secures it by sliding the locking structure. This mechanism provides a clear tactile response, helping operators confirm proper engagement and reducing assembly errors. It also facilitates easier maintenance and replacement when needed.

Key Features and Advantages

Drawer-Type Locking for Stable Connection

In applications where vibration or movement is present, conventional connectors may experience loosening over time. The KH-FPC0.5-H5.0-18P-LTQB uses a drawer-style locking structure to mechanically secure the FPC after insertion.

This design helps maintain consistent contact between the cable and terminals, reducing the risk of intermittent signals. It is particularly suitable for portable or motion-prone devices where connection stability is important.

Compact and Lightweight Design

With a unit weight of approximately 0.51g and a plastic thickness of 3.8mm, the connector contributes minimal load to the overall device. This makes it suitable for applications where size and weight are important considerations, such as compact imaging devices and handheld electronics.

The 0.5mm pitch allows more contacts within a limited PCB area, enabling designers to support multiple signal paths without increasing board size.

Material and Electrical Performance

The contacts are made from copper alloy, providing reliable conductivity and mechanical strength. A tin-plated surface supports standard soldering processes and ensures compatibility with common manufacturing practices.

The connector is rated for 50V and operates within a temperature range of -25°C to +85°C. These specifications make it suitable for a wide range of consumer and light industrial applications when used within appropriate design conditions.

Compatibility with Standard FPC Cables

The connector supports FPC cables with a thickness of 0.3mm, which aligns with commonly used industry specifications. This compatibility simplifies component selection and integration, helping streamline the design and production process.

Typical Application Scenarios

Security and Surveillance Systems

In camera modules, image sensors are often connected to the mainboard through FPC cables. The KH-FPC0.5-H5.0-18P-LTQB can be used to transmit signals between these components, supporting multi-line connections required for imaging systems.

Its locking structure helps maintain consistent connectivity during long-term operation, reducing the likelihood of signal disruption.

Automotive Electronic Devices

In applications such as dashboard displays and driving recorders, internal connections must accommodate limited space and moderate vibration. This connector can be used to link display modules and control boards.

Designers should consider the operating temperature range to ensure compatibility with the intended environment.

Consumer Electronics

Devices like tablets and educational electronics rely on FPC connections for displays and touch modules. The vertical SMD structure of this connector supports efficient internal layout, contributing to more compact product designs.

The drawer-type locking mechanism also improves assembly consistency during mass production.

Portable Imaging Equipment

In devices such as action cameras and compact recording units, internal space is highly constrained. The small size and lightweight nature of this connector make it suitable for such designs, allowing flexible placement while maintaining reliable connections.

Conclusion: Supporting Clean and Reliable Internal Design

In modern electronic systems, connectors serve not only as electrical interfaces but also as key structural elements. The kinghelm KH-FPC0.5-H5.0-18P-LTQB provides a balanced combination of compact size, stable locking, and practical specifications for various applications.

Its drawer-type locking mechanism, lightweight structure, and compatibility with standard FPC cables make it a suitable option for designers seeking efficient internal interconnection solutions. As smart devices continue to advance, such components will remain essential in enabling organized and reliable internal architectures.
