『Product Highlight』Kinghelm IDC Connector KH-2.54PH180-2X11P-L8.9 for Reliable Circuit Connections

In modern electronic products and circuit board designs, connectors play an important role in ensuring stable signal transmission. The performance of a connector not only affects the reliability of the circuit but also influences the ease of maintenance. IDC (Insulation Displacement Connector) connectors are commonly used due to their ease of installation and wide compatibility. The Kinghelm KH-2.54PH180-2X11P-L8.9 is a typical example of this type, featuring a simplified "horn-style" (simplified) socket design, suitable for various electronic devices.

Product Overview

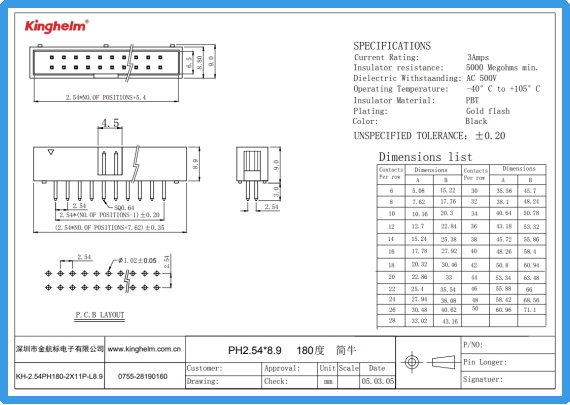

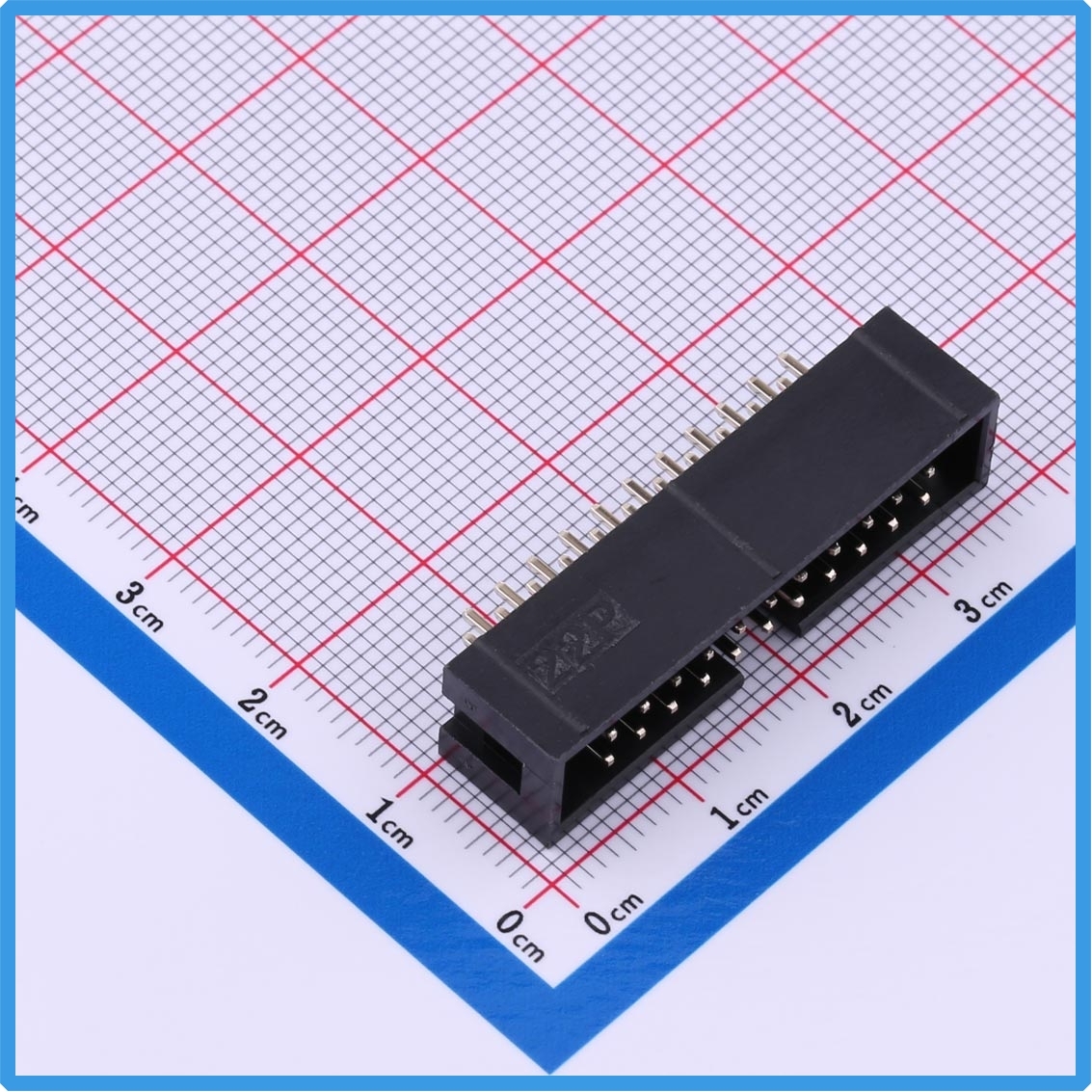

The KH-2.54PH180-2X11P-L8.9 features a 180° straight insertion design with a plastic height of 8.9 mm. The connector is arranged in 2 rows, with 11 pins per row, and a standard 2.54 mm pitch. This arrangement allows compatibility with a wide range of circuit board layouts. The contact pins are gold-plated, which helps maintain stable electrical performance under normal operating conditions. The black insulating body provides basic insulation protection while maintaining a simple appearance suitable for various device designs. The connector is packaged in a plug-in format, which supports batch installation and assembly in both automated and manual production environments.

Structural Features

The straight insertion design of the KH-2.54PH180-2X11P-L8.9 simplifies installation. Compared with traditional solder-type connectors, it allows direct cable-to-board connections without additional soldering. The simplified "horn-style" socket structure provides stable retention while offering the possibility of easy removal, facilitating maintenance or cable replacement. The 2x11 pin layout accommodates moderate signal transmission requirements, and the standard 2.54 mm pitch ensures ease of integration with commonly used circuit boards.

Electrical and Mechanical Performance

This connector supports a rated current of 3A, which meets the signal and power requirements of most small-to-medium electronic devices. The rated insulation voltage is AC 500V, providing basic safety protection for typical electronic applications. The working temperature range spans -40℃ to +105℃, making it suitable for standard environmental conditions, such as indoor control equipment or household appliances. Gold-plated contacts help reduce changes in contact resistance over time, supporting stable electrical performance. The overall structure maintains mechanical stability during insertion and removal, minimizing wear on both the connector and the circuit board.

Application Scenarios

The KH-2.54PH180-2X11P-L8.9 is suitable for a variety of applications. In industrial control systems, it can be used for PLC control boards, sensor interfaces, and automation system signal connections. In communication devices, it serves as an interface for low-to-medium power modules, ensuring reliable signal transmission. In household appliances, it can connect power boards and control boards while supporting multiple-pin signal transmission. For embedded systems and IoT devices, it provides interfaces for sensors, microcontrollers, and peripheral modules, ensuring stable and convenient connections.

Installation and Usage Recommendations

During installation, it is important to align the connector properly with the cable and board interface to prevent bending of the contacts or damage to the board. Although the straight-insertion design simplifies the process, uniform force should be applied during each insertion and removal. After installation, a visual inspection can help confirm that all contacts are properly engaged. Avoid exposing the connector to high humidity or corrosive environments for prolonged periods, as this may lead to oxidation of contacts or degradation of the insulating body.

For applications involving multiple pins, it is recommended to arrange the rows and cable routing according to design specifications to prevent overcrowding or excessive bending of wires, which can affect contact quality. Tray packaging facilitates storage, batch handling, and transportation, supporting production efficiency.

Maintenance and Inspection

Routine maintenance involves periodically checking the connector for proper insertion and contact condition. If minor oxidation or increased contact resistance occurs over time, cleaning or slight adjustment of the contacts can help maintain electrical performance. For scenarios with frequent insertion and removal, periodic replacement of the connector may be necessary to ensure consistent performance. Proper installation, use, and maintenance allow the KH-2.54PH180-2X11P-L8.9 to provide stable signal transmission and electrical connection for most conventional electronic devices.

Conclusion

The Kinghelm KH-2.54PH180-2X11P-L8.9 IDC connector, featuring a simplified "horn-style" socket design, offers a balanced combination of structure and performance suitable for a variety of electronic devices. Its 180° straight-insertion method, standard pitch, and reliable electrical specifications make it applicable in industrial control, communication equipment, household appliances, and embedded systems. With proper installation and maintenance, it provides stable connections and supports consistent operation of connected devices.
