With the continuous trend toward compact and multifunctional electronic devices, interface components play an increasingly important role in overall system design. As a key interface for both power supply and data transmission, USB connectors directly influence device stability, usability, and compatibility. Whether in consumer electronics or industrial systems, selecting the appropriate USB connector is essential for ensuring reliable operation.

Among the commonly used USB connector types—Type-A, Type-B, Type-C, Micro-USB, and Mini-USB—Type-A remains widely adopted due to its mature structure and strong compatibility. It is frequently used on host-side interfaces, supporting a wide range of external devices such as USB flash drives, keyboards, mice, and other peripherals.

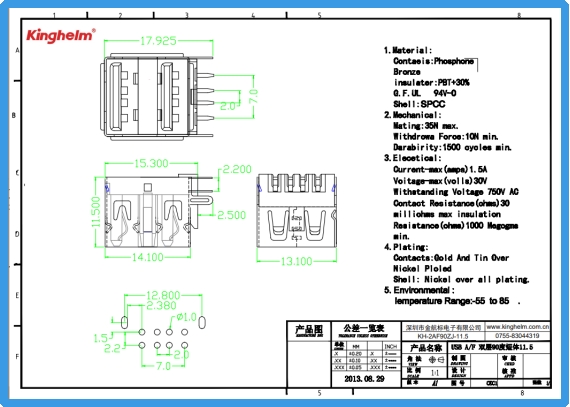

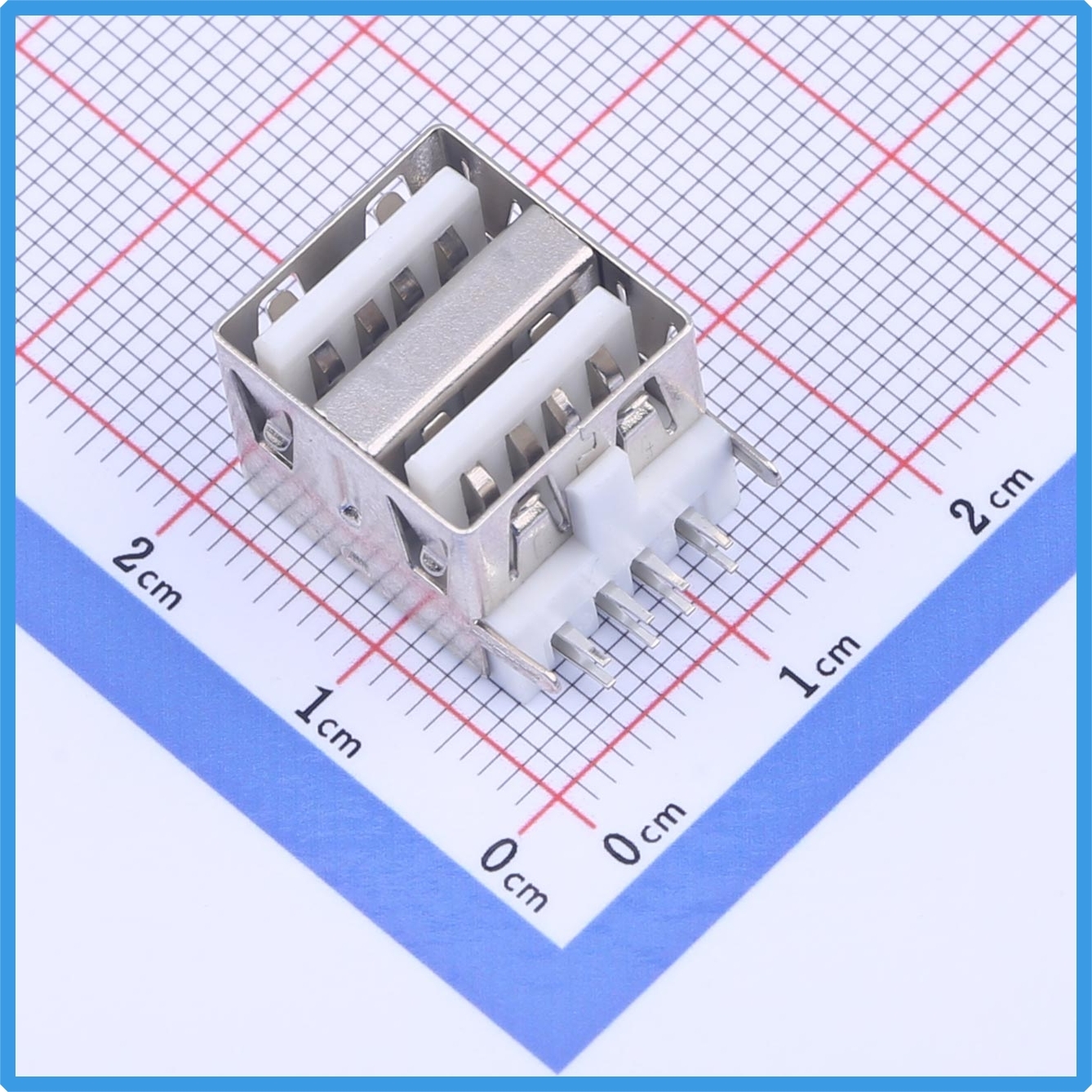

The Kinghelm KH-2AF90ZJ-11.5 is a USB Type-A female connector designed for practical and space-conscious applications. It features a right-angle (horizontal) mounting structure, allowing it to be installed on printed circuit boards where vertical space is limited. This design helps optimize internal layout and improves overall product integration, especially in compact electronic devices.

In terms of configuration, this connector includes 4 contacts (4P), making it suitable for USB 2.0 applications. It also adopts a dual-port (2-port) design, enabling multiple device connections within a limited PCB area. This feature is particularly useful in systems that require simultaneous access to multiple USB peripherals without increasing board complexity.

From an electrical performance perspective, the KH-2AF90ZJ-11.5 supports a rated current of 1.5A and a rated voltage of 30V. These specifications meet the requirements for standard USB power delivery and data communication. The connector is designed for approximately 1,500 insertion and extraction cycles, providing sufficient durability for typical usage conditions.

The operating temperature range of -55°C to +85°C allows the connector to function in environments with varying temperature conditions. This makes it suitable for applications beyond standard indoor electronics, including certain industrial or semi-outdoor systems where temperature fluctuations may occur.

Structurally, the right-angle mounting design reduces the vertical profile of the connector, which is beneficial for slim devices or densely populated PCBs. Additionally, the connector has a body length of 11.5 mm, offering a compact footprint that supports efficient board layout. The product is supplied in tray packaging, which is suitable for automated assembly and batch production processes.

In the broader USB ecosystem, it is important to distinguish between connector type and USB version. While the KH-2AF90ZJ-11.5 uses a Type-A interface, its 4-pin configuration aligns with the USB 2.0 standard. USB 2.0 provides a theoretical maximum data transfer rate of 480 Mbps, which is sufficient for many applications such as input devices, printers, and basic storage devices.

As USB technology evolves, higher-speed standards such as USB 3.2 and USB4 have been introduced, offering significantly increased bandwidth. However, these standards require additional contacts and more complex connector designs. For applications that do not demand high-speed data transfer, USB 2.0 connectors remain a practical and widely used solution due to their simplicity and compatibility.

The KH-2AF90ZJ-11.5 connector can be applied in various scenarios. In industrial control systems, it can be used in embedded controllers, data acquisition units, and control boards where stable connectivity is required. Its temperature tolerance and mechanical reliability make it suitable for such environments.

In consumer electronics, this connector is commonly used in devices such as routers, set-top boxes, and audio equipment, where USB ports are needed for peripheral connections or data access. The standard Type-A interface ensures compatibility with commonly used USB devices, reducing the need for additional adapters.

In development platforms and testing equipment, including microcontroller boards and embedded system kits, the KH-2AF90ZJ-11.5 provides a convenient interface for connecting external devices during debugging and development processes. Its standard design helps streamline user interaction and improves usability.

Additionally, in applications such as self-service terminals, security systems, and customized electronic equipment, USB interfaces are often required for maintenance, data transfer, or system updates. The dual-port configuration of this connector allows for increased flexibility in interface design while maintaining a compact layout.

When selecting a USB connector, engineers typically evaluate multiple factors, including connector type, mounting method, electrical ratings, durability, and environmental performance. For example, right-angle connectors are preferred in space-constrained designs, while insertion life becomes important in applications involving frequent use.

In conclusion, although USB Type-A connectors are based on a well-established design, their performance and suitability still depend on specific structural and electrical characteristics. The Kinghelm KH-2AF90ZJ-11.5, with its right-angle structure, dual-port configuration, and balanced performance parameters, provides a practical solution for a wide range of electronic applications. Careful selection based on actual design requirements can help achieve better system integration and stable operation.
