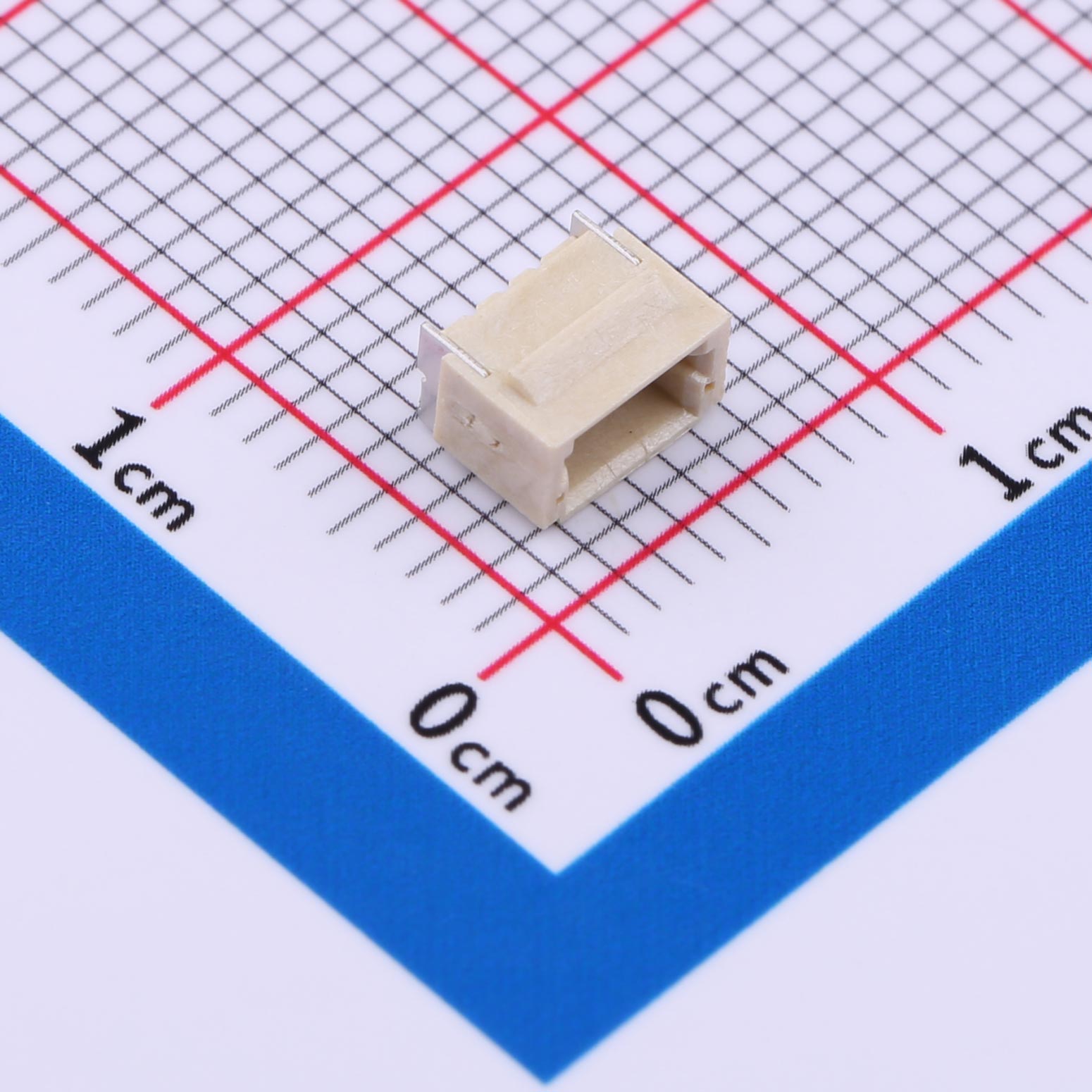

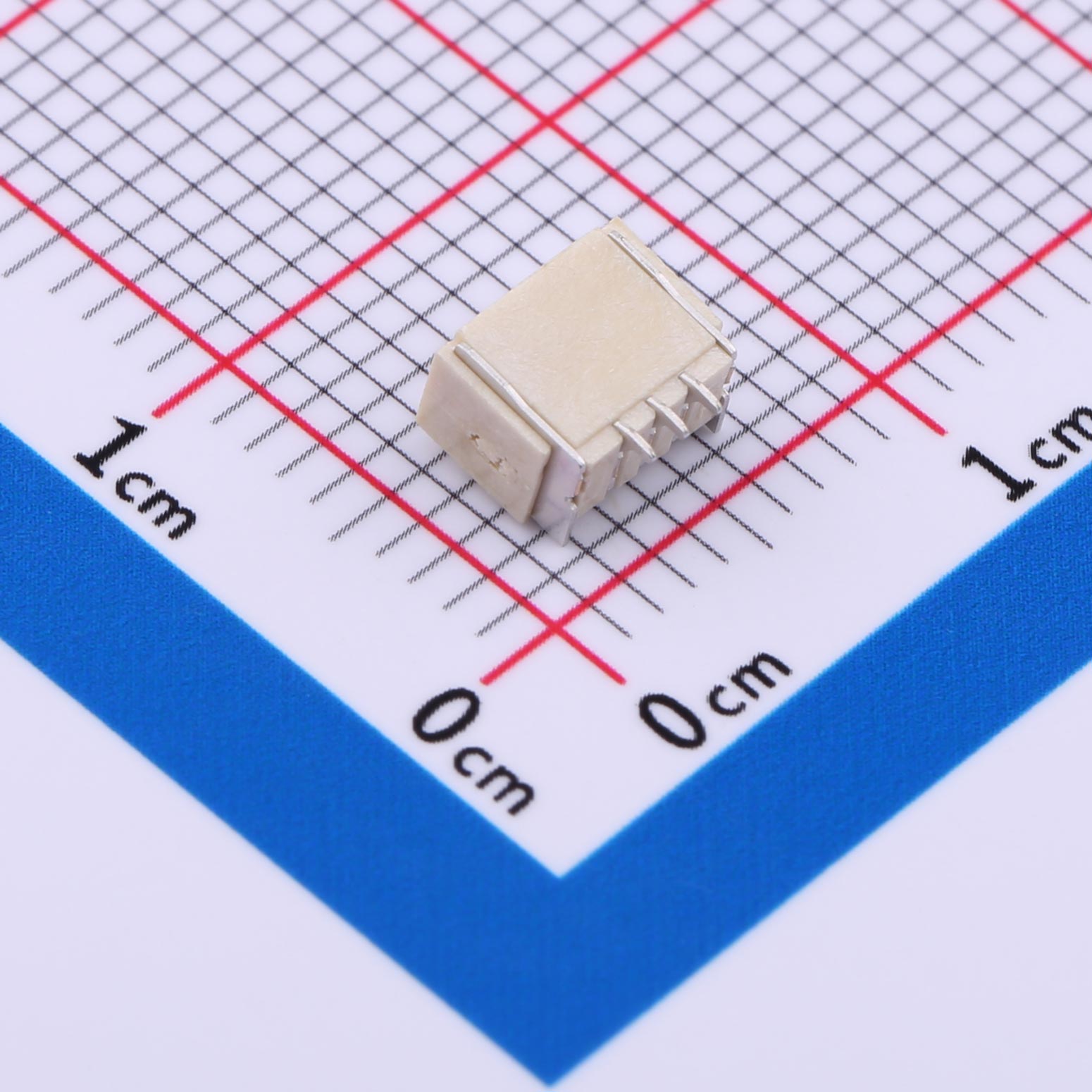

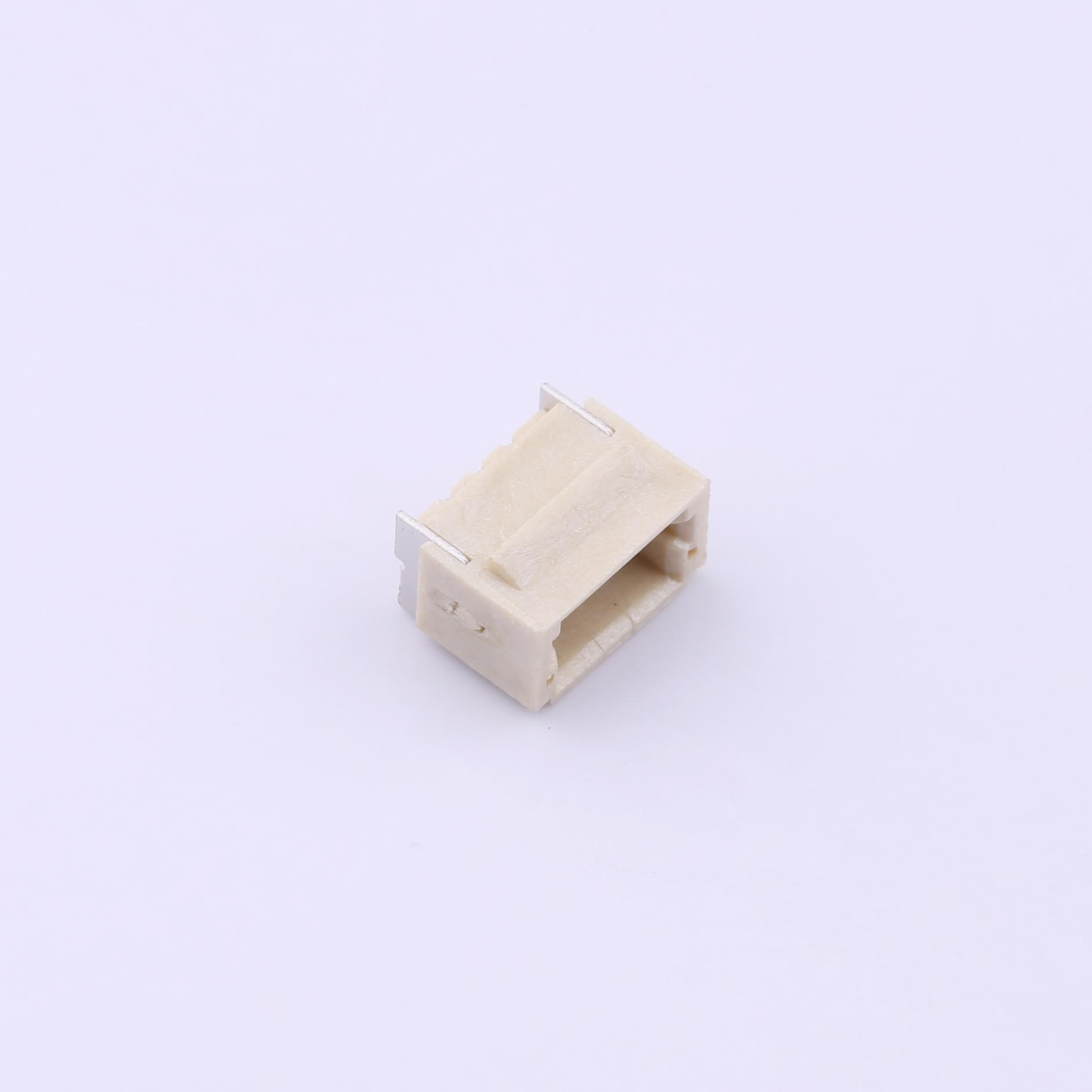

Wire-to-Board Connector, 1mm Pitch, 1x3P, SMD, KH-A1000RSL-3P
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.00mm pitch, 1x3 positions
● Horizontal mount (right-angle) SMD design
● Compact, low-profile design
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant
Product Benefits
● Ideal for ultra-compact PCB layouts
● Perfect for small, low-profile devices
● Reliable electrical connection with stable performance
● Compatible with high-speed automated SMT assembly
● Efficient for power and signal transmission
● Low-profile design for space-constrained applications
● Cost-effective for small pin count interconnect needs
Product Applications
● Consumer electronics
● Wearable technology
● Mobile communication systems
● IoT devices
● Smart home products
● Medical devices
● Embedded control systems
