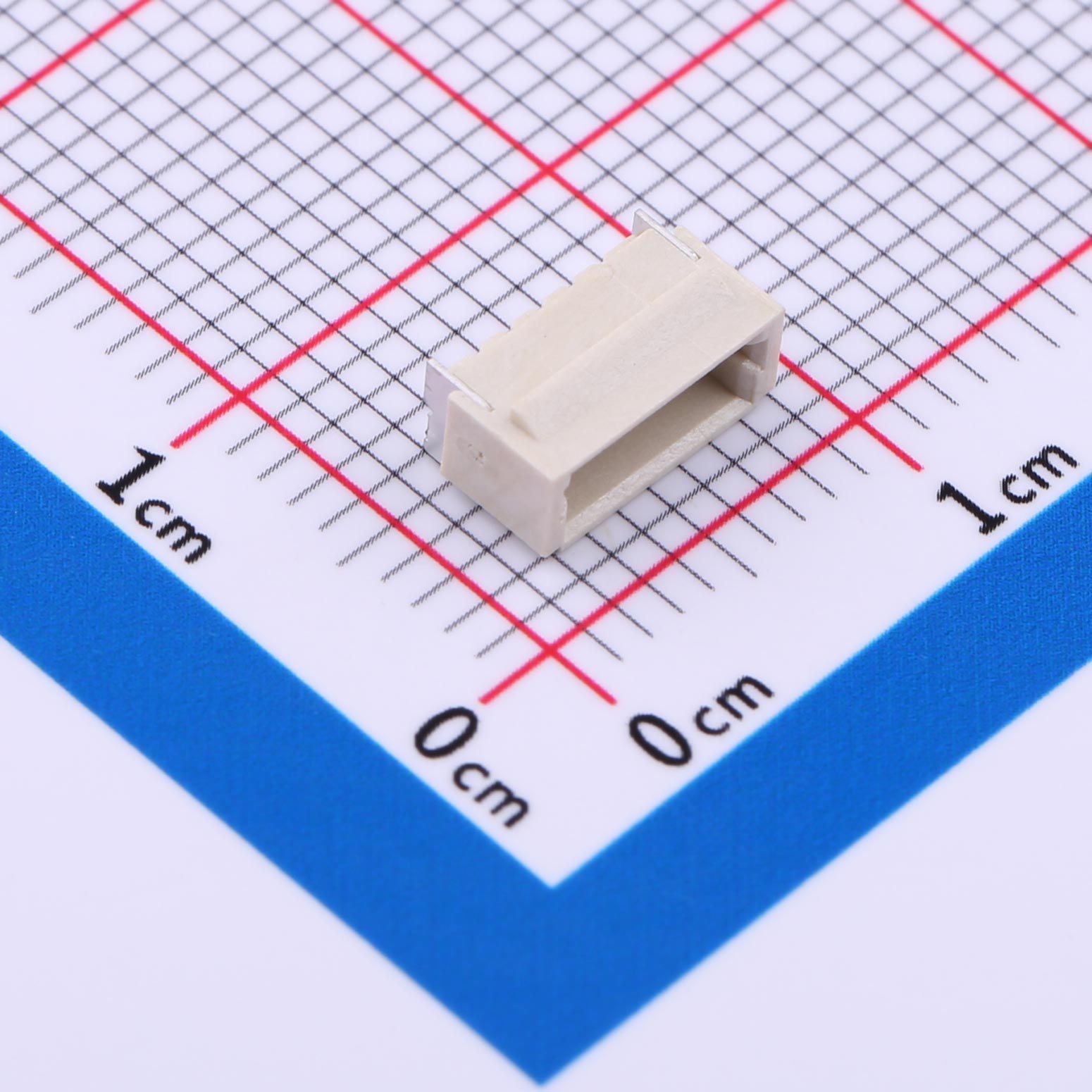

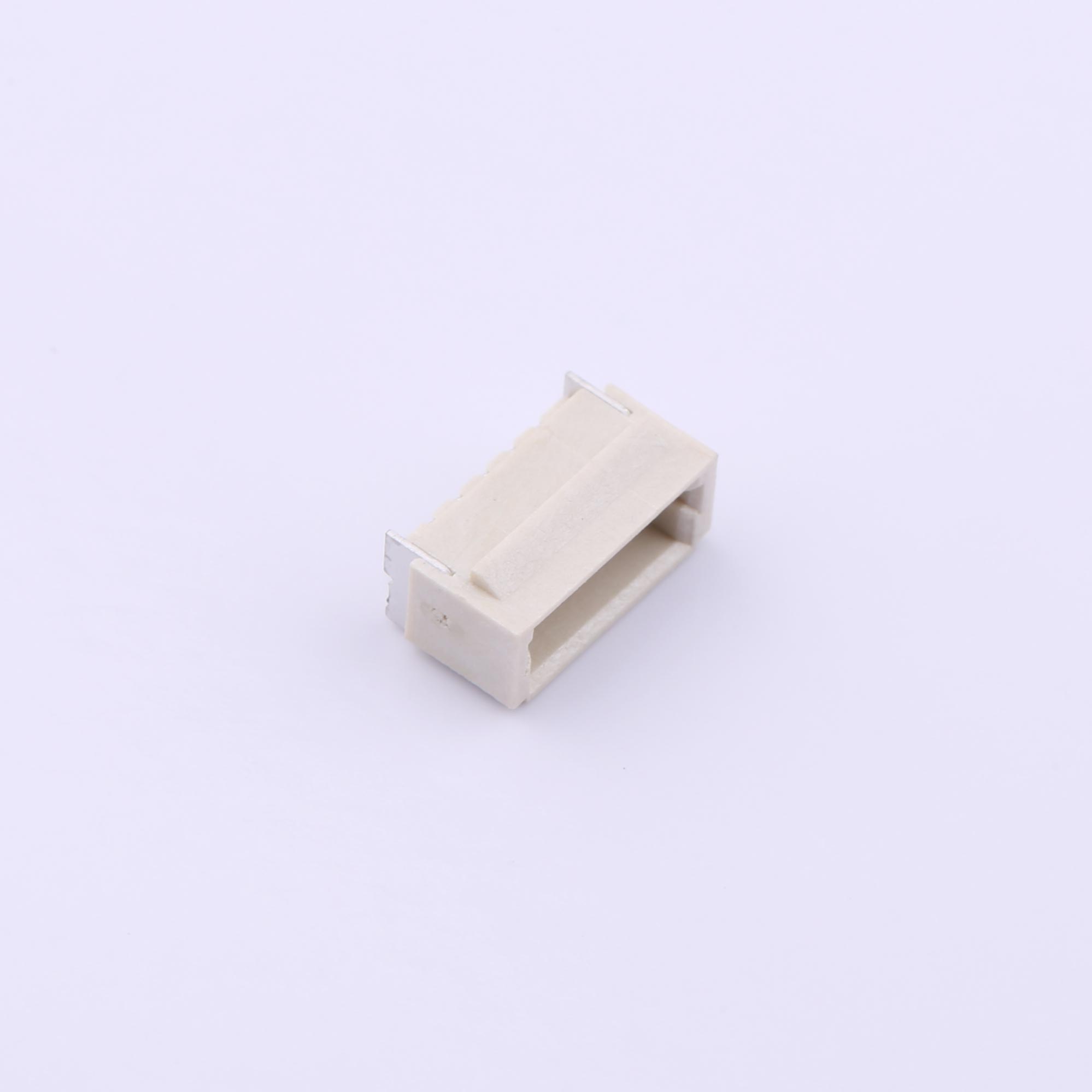

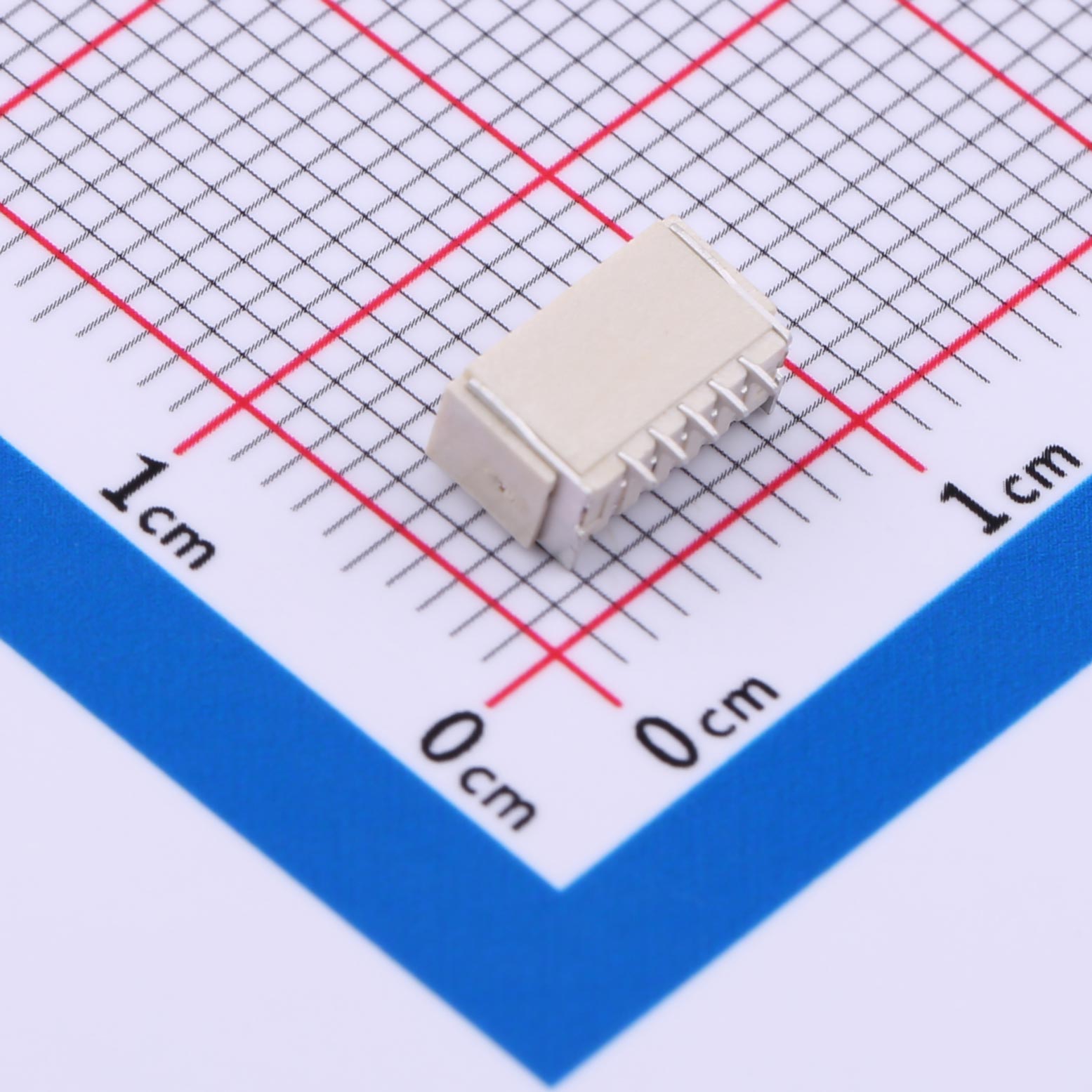

Wire-to-Board Connector, 1mm Pitch, 1x5P, SMD, KH-A1000RSL-5P
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.00mm pitch, 1x5 positions
● Horizontal mount (right-angle) SMD design
● Compact, low-profile structure
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant
Product Benefits
● Perfect for space-limited PCB layouts
● Ideal for small and slim devices
● Reliable electrical connection with minimal resistance
● Compatible with automated SMT assembly lines
● Efficient in power and signal transmission
● Low-profile design for height-sensitive applications
● Cost-effective for low-pin count interconnects
Product Applications
● Consumer electronics
● Wearable gadgets
● Portable devices
● Communication systems
● Smart home products
● IoT and sensor-based applications
● Embedded systems
