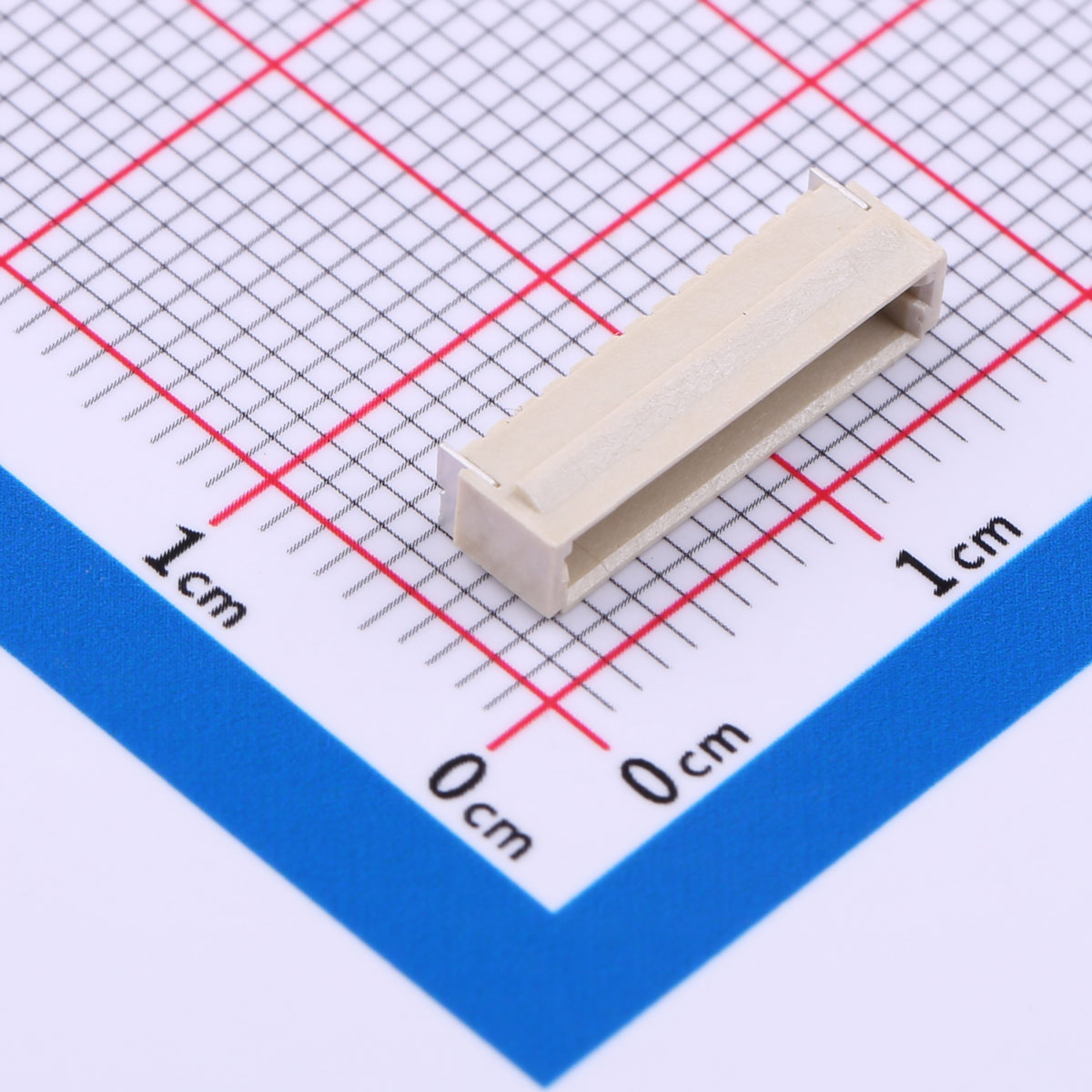

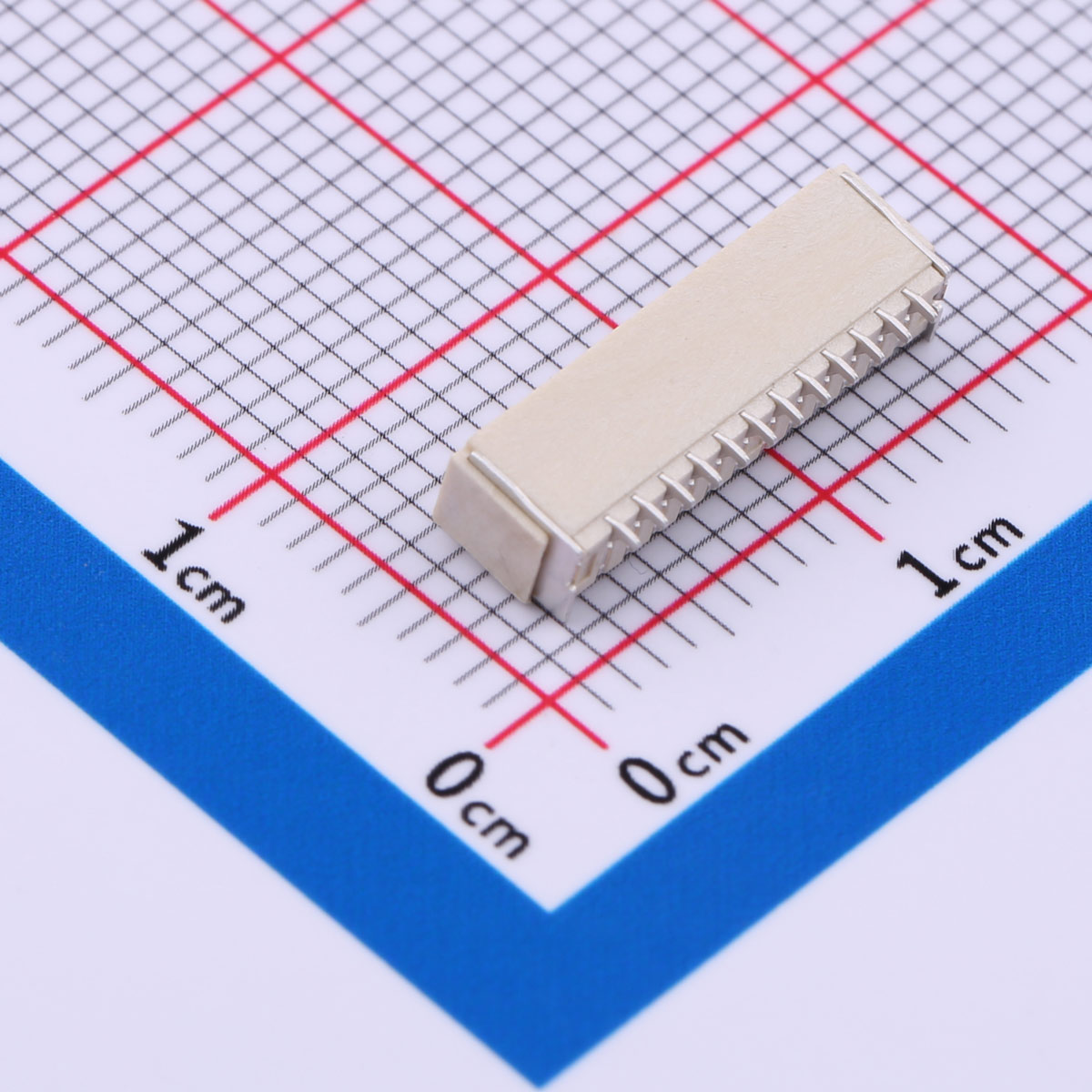

Wire-to-Board Connector, 1mm Pitch, 1x12P, SMD, KH-A1000RSL-12P
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.00mm pitch, 1x12 positions
● Horizontal mount (right-angle) SMD design
● Low-profile, compact configuration
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant
Product Benefits
● Space-efficient design for compact PCB layouts
● Perfect for low-profile applications
● Stable and reliable electrical contact
● Optimized for automated SMT assembly
● Effective signal and power transmission
● Easy to handle and solder
● Cost-effective solution for mid-range pin count connectors
Product Applications
● Consumer electronics
● Wearable devices
● Portable medical equipment
● Smart home systems
● Industrial automation modules
● Communication equipment
● IoT and embedded systems
