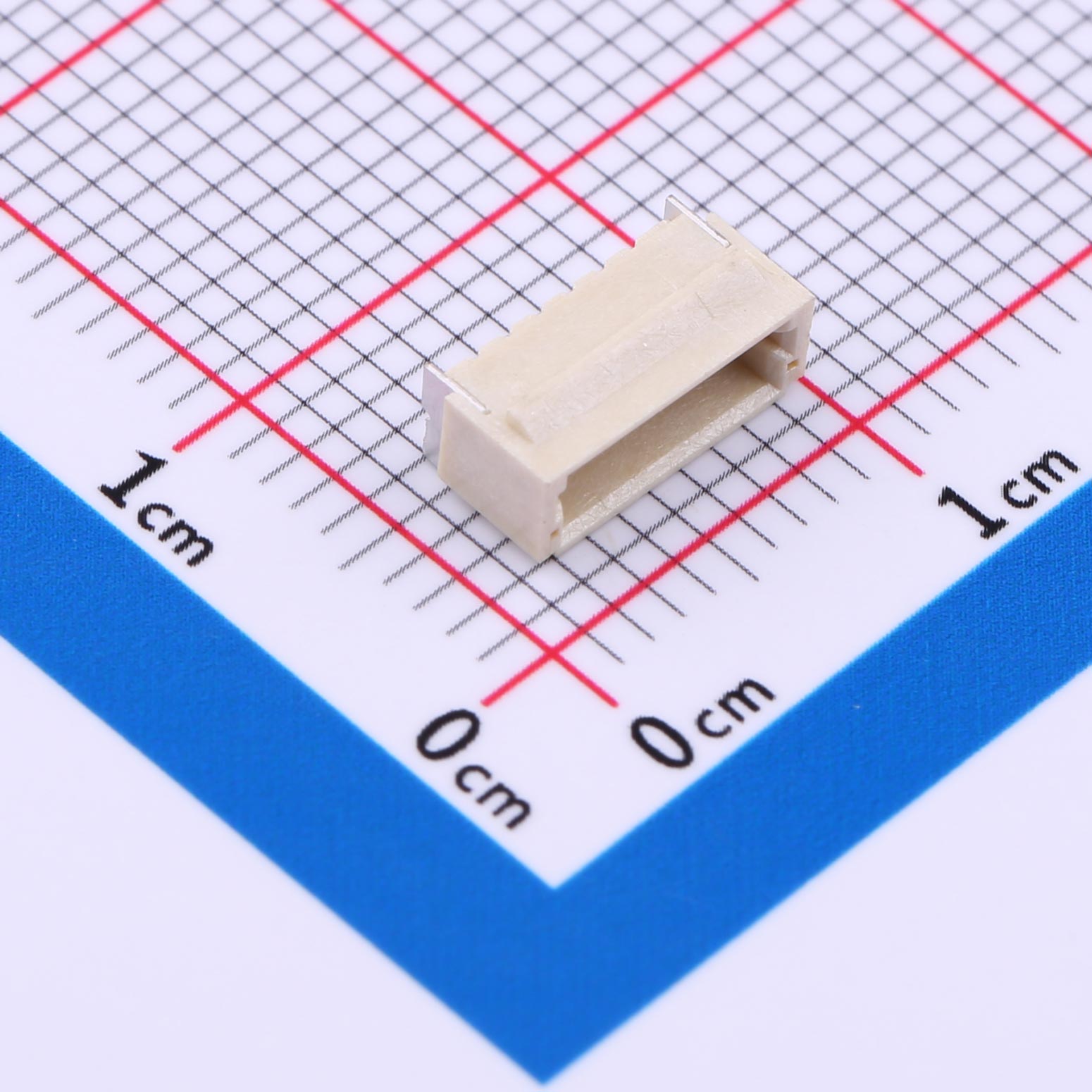

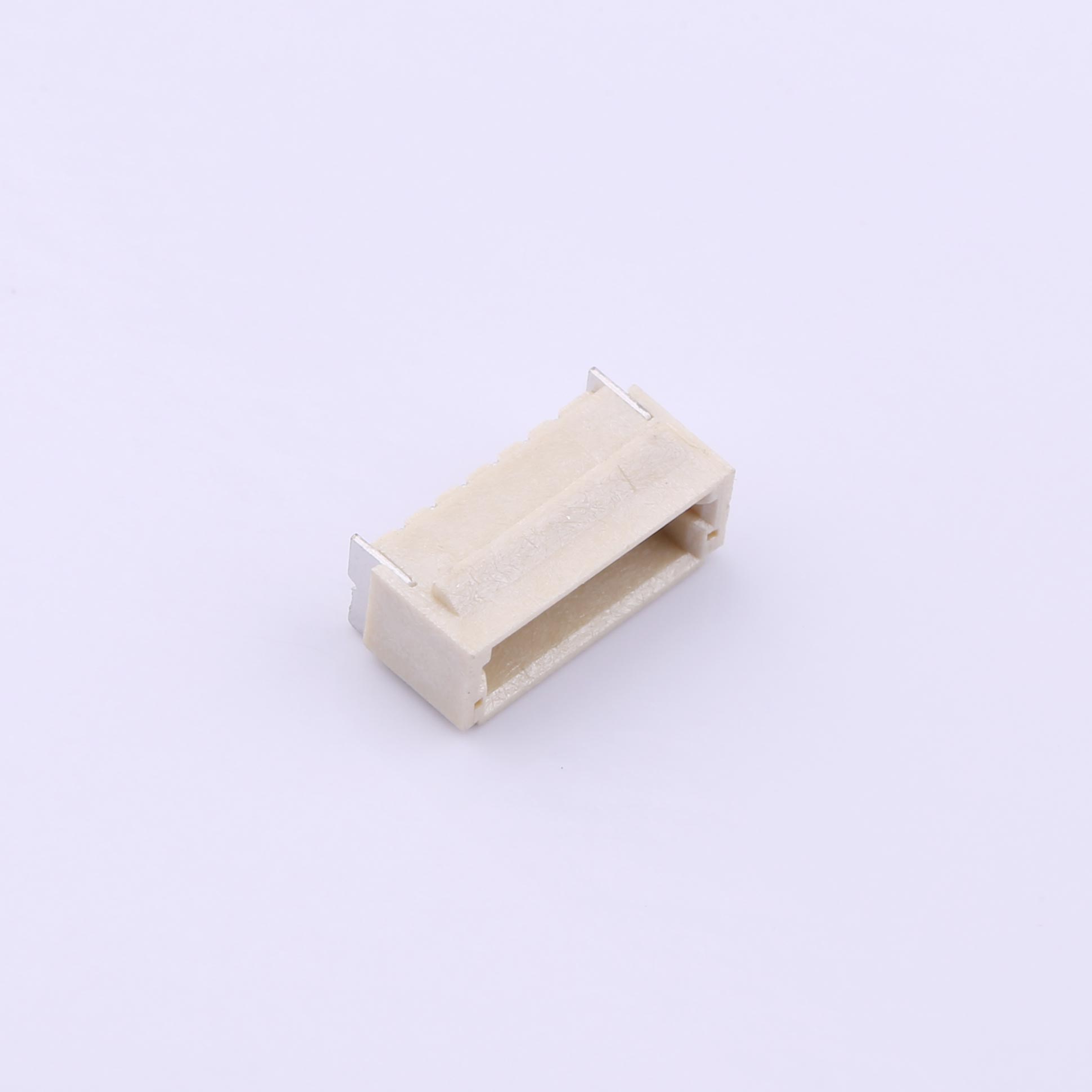

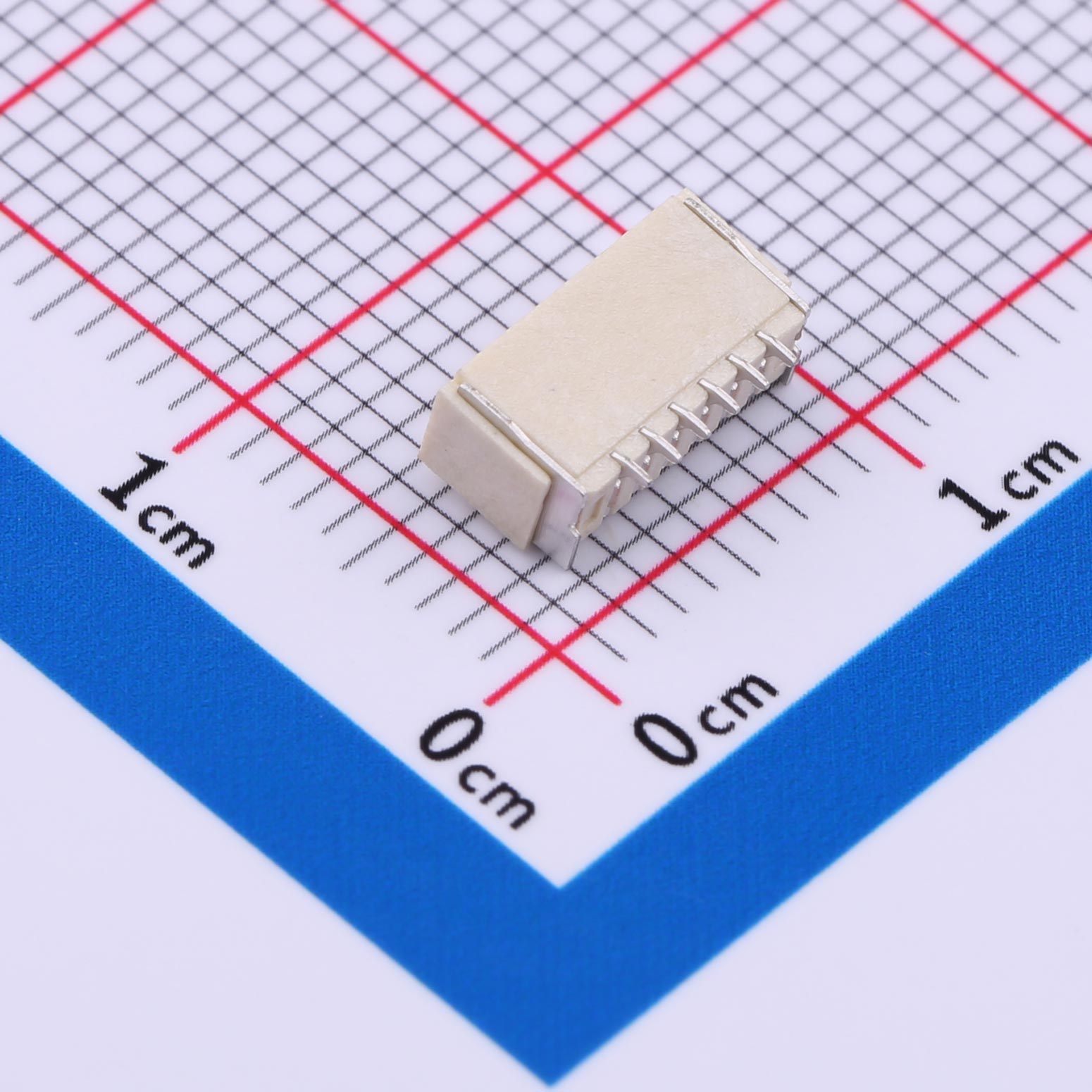

Wire-to-Board Connector, 1mm Pitch, 1x6P, SMD, KH-A1000RSL-6P
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.00mm pitch, 1x6 positions
● Horizontal mount (right-angle) SMD design
● Compact and low-profile construction
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant
Product Benefits
● Ideal for applications with limited PCB space
● Suitable for compact and lightweight devices
● Provides stable and reliable electrical contact
● Easily integrated into automated SMT assembly
● Efficient power and signal transmission
● Low-profile design fits height-sensitive applications
● Cost-effective solution for small pin count connections
Product Applications
● Consumer electronics
● Wearable devices
● Smart home systems
● Communication modules
● IoT and sensor devices
● Portable devices
● Embedded control systems
