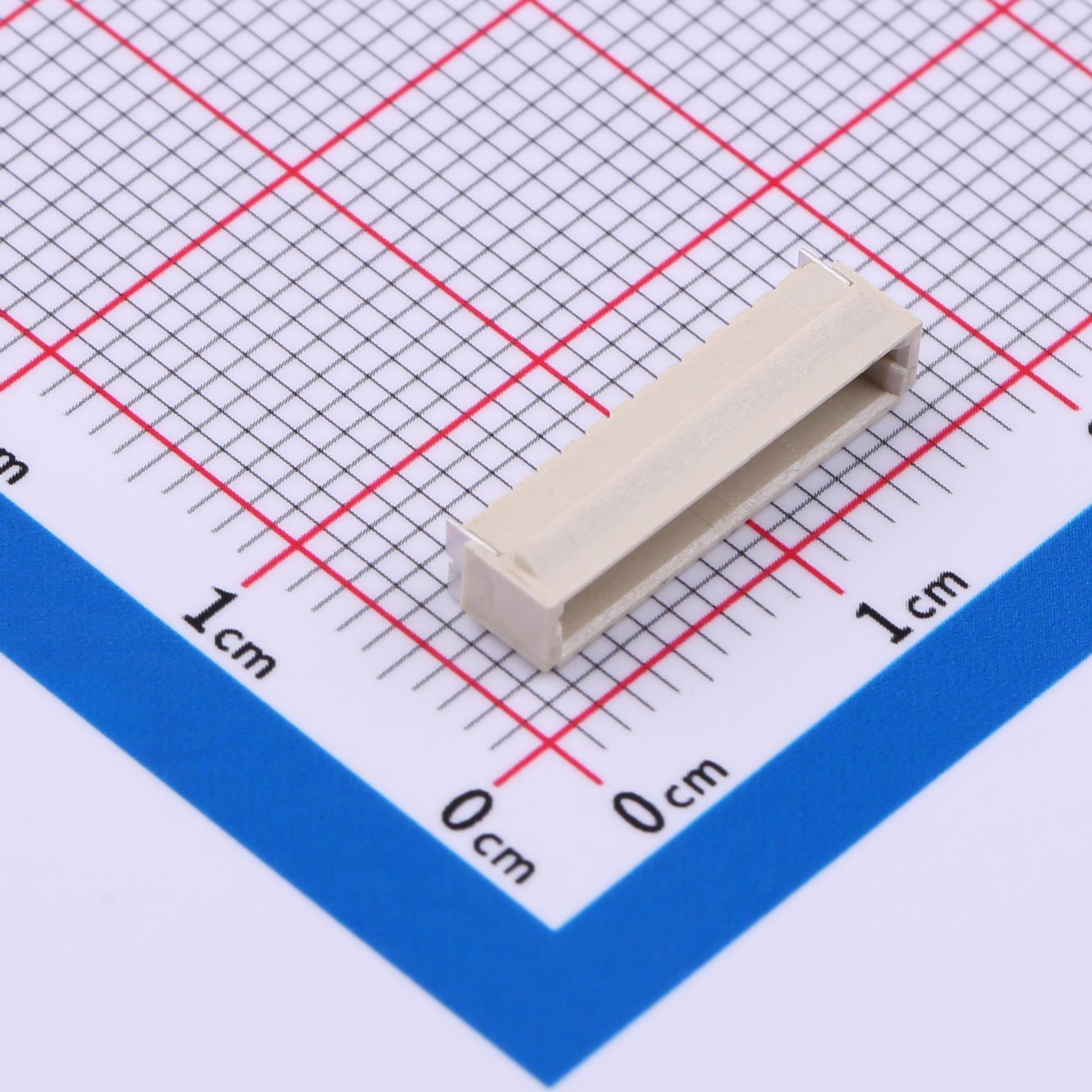

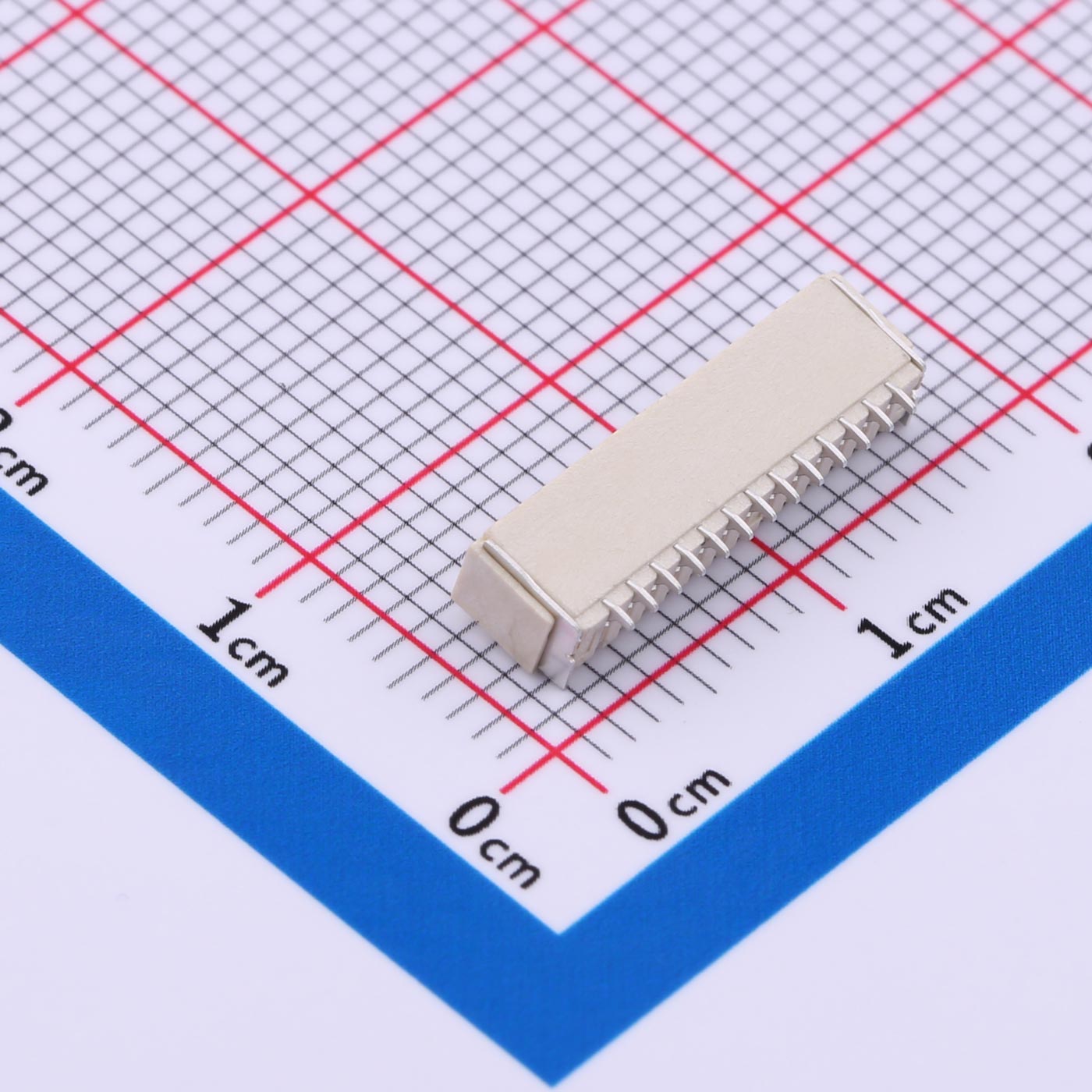

Wire-to-Board Connector, 1mm Pitch, 1x13P, SMD, KH-A1000RSL-13P
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.00mm pitch, 1x13 positions
● Horizontal mount (right-angle) SMD design
● Compact structure with low profile
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant
Product Benefits
● Ideal for slim device integration
● Space-saving right-angle configuration
● Reliable contact in small-pitch applications
● Compatible with automated SMT assembly
● Consistent performance in signal/power transmission
● Easy to align during board assembly
● Affordable option for mid-pin-count designs
Product Applications
● Mobile electronics
● Smart sensors and modules
● Embedded control boards
● Portable testing equipment
● Home automation devices
● Wearable technology
● Signal interfaces in compact circuits
