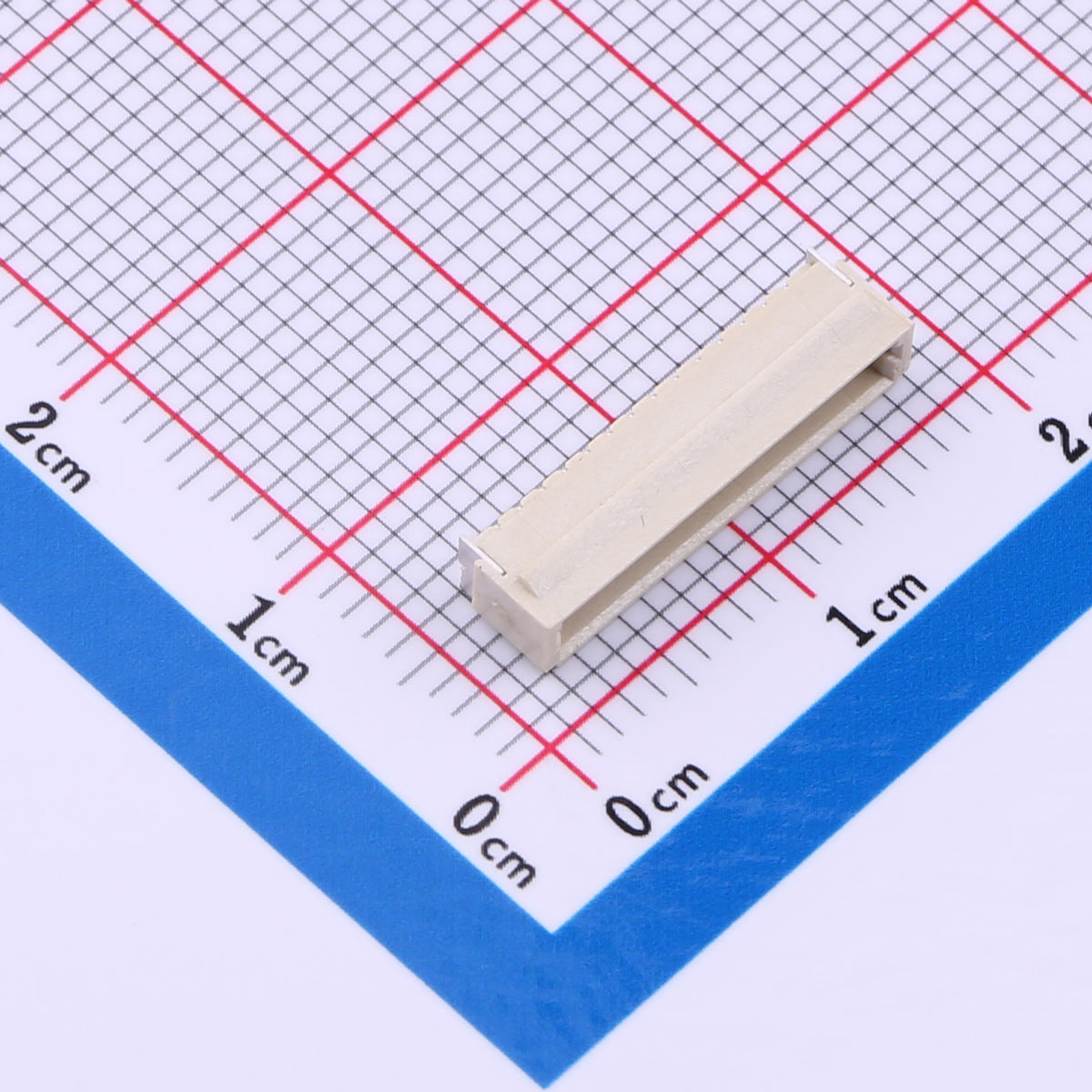

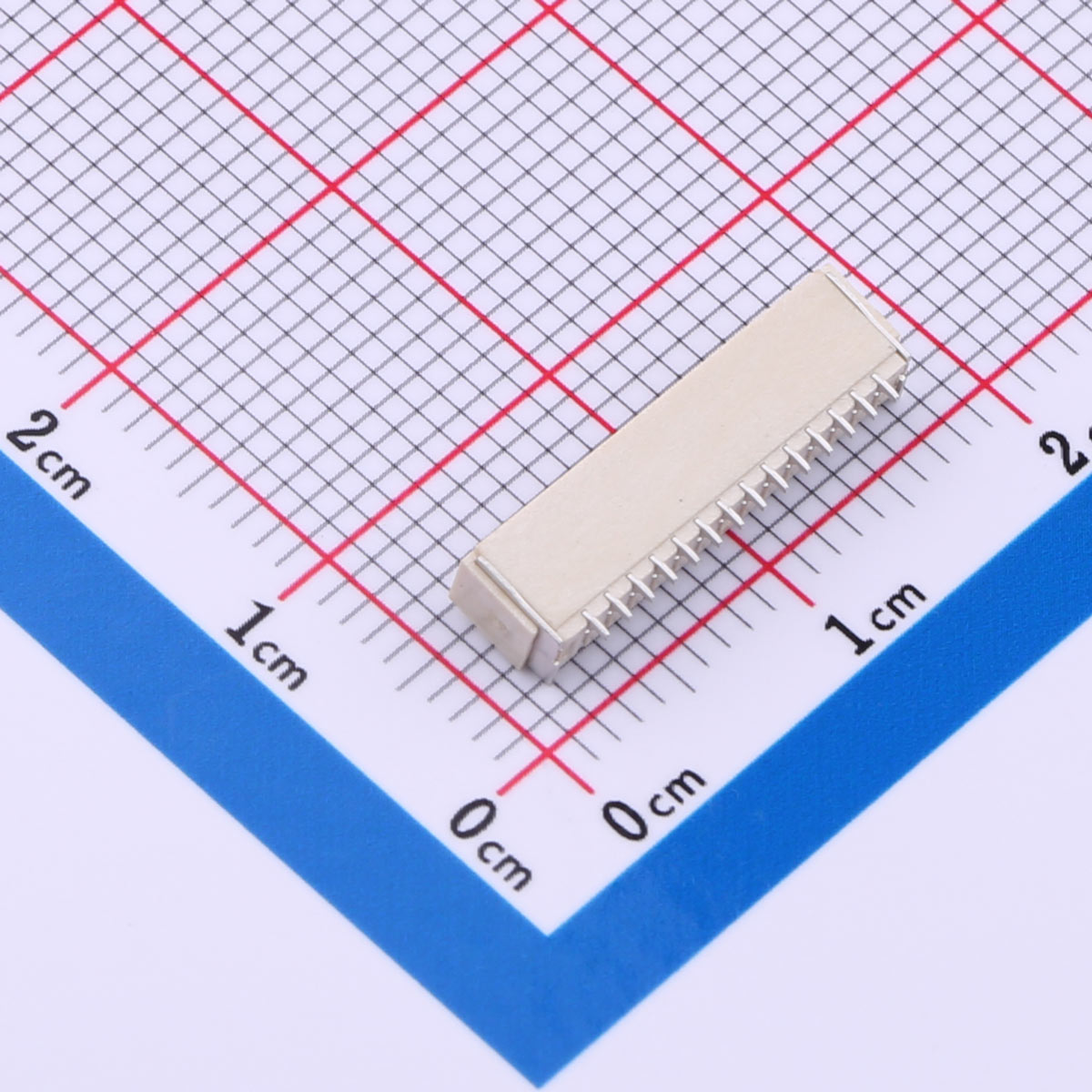

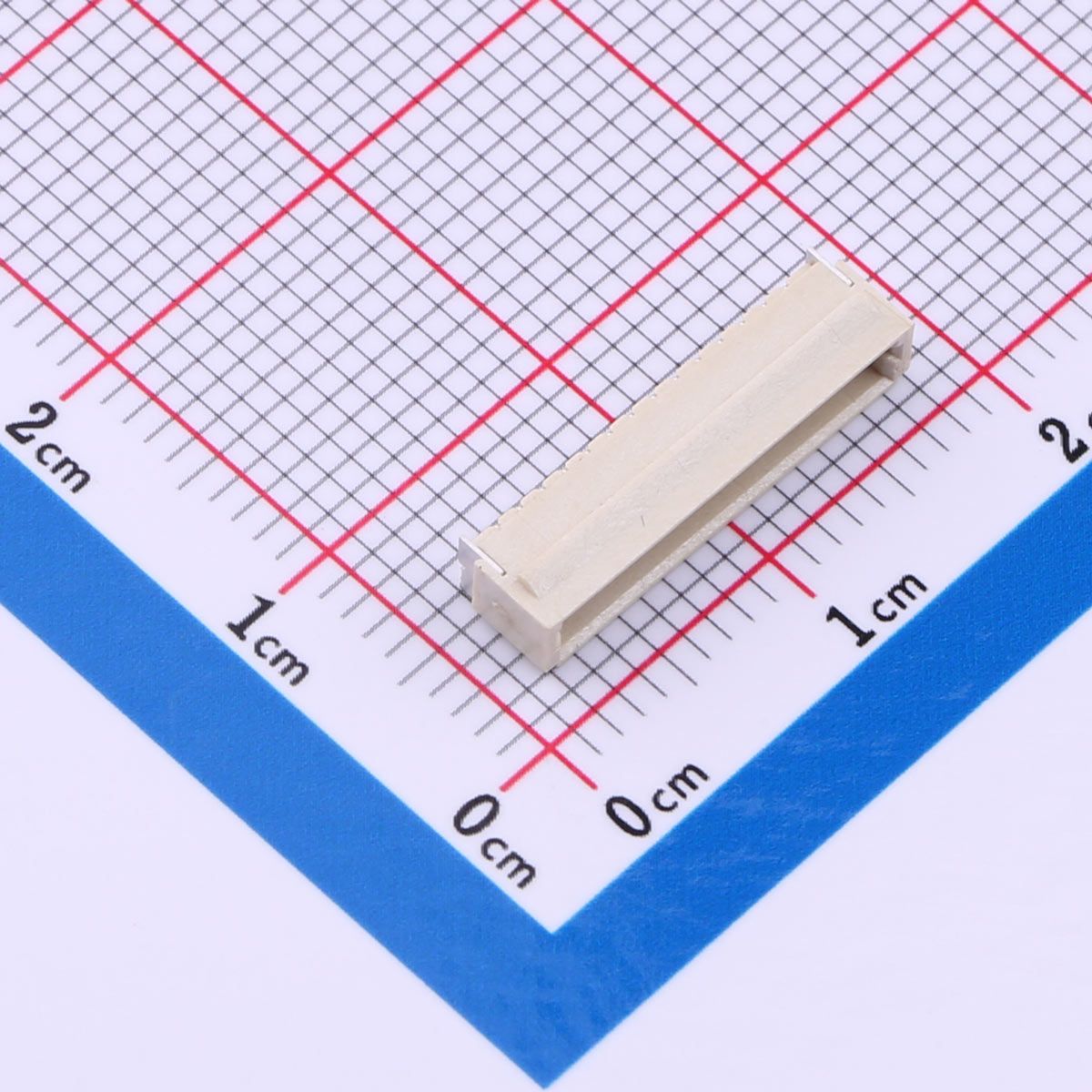

Wire-to-Board Connector, 1mm Pitch, 1x14P, SMD, KH-A1000RSL-14P
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.00mm pitch, 1x14 positions
● Horizontal mount (right-angle) SMD design
● Low-profile, compact footprint
● Rated current: 1A AC/DC
● Rated voltage: 50V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● Lead-free, RoHS compliant
Product Benefits
● Saves PCB space with right-angle layout
● Optimized for surface mount production lines
● Stable and secure electrical connection
● High reliability in compact assemblies
● Simple integration with matching cable systems
● Cost-efficient solution for fine-pitch designs
● Reduces vertical height in enclosure designs
Product Applications
● Compact consumer electronics
● Communication terminals
● Industrial controllers
● Handheld and battery-powered devices
● Smart home modules
● IoT sensors and nodes
● Low-profile embedded systems
